Features and Specifications:
-
Heavy duty metal impact sprinklers, 3/4” male or female.
-
Full Circle.
-
Specially designed for frost protection. The top cap completely seals and protects the sprinkler from frost damage.
-
Uniform precipitation rate.
Applications:

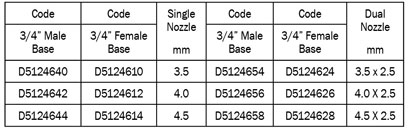

Ordering Specifications
|
Performance Table - 233B-AF
Nozzle
mm |
Pressure
kg/cm² |
Discharge
m³/h |
Diameter
m |
3.5
Blue
|
3.0 |
0.810 |
26.5 |
| 4.0 |
0.930 |
27.5 |
| 5.0 |
1.020 |
28.0 |
4.0*
Black
|
3.0 |
1.060 |
29.0 |
| 4.0 |
1.220 |
30.0 |
| 5.0 |
1.350 |
30.0 |
4.5
Brown |
3.0 |
1.290 |
30.0 |
| 4.0 |
1.500 |
32.0 |
| 5.0 |
1.650 |
33.0 |
5.0
Purple |
3.0 |
1.600 |
32.5 |
| 4.0 |
1.850 |
34.5 |
| 5.0 |
2.100 |
36.0 |
5.5
Purple |
3.0 |
1.950 |
34.0 |
| 4.0 |
2.250 |
35.5 |
| 5.0 |
2.500 |
37.0 |
5.0
Purple |
3.0 |
2.300 |
34.0 |
| 4.0 |
2.700 |
37.5 |
| 5.0 |
3.000 |
37.5 |
* Standard nozzle |
|
