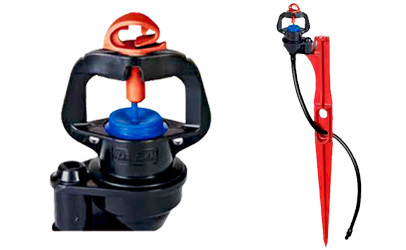

2002 Aquasmart

Features and Specifications:

• Flow regulated micro-sprinkler for optimal undertree irrigation.

• Constant flow between 1.5-4.0 kg/cm² (20-60 psi) pressure.

• Uniform irrigation and fertigation at all topographical conditions.

• Wide range of flow rates and distribution patterns.

• Insect-proof pop-up swivel.

• Sturdy and solid structure.

• Easy to dismantle and assemble.

• On demand 2002 AquaSmart can be supplied as an assembly.

• Clogging resistant even at lowest flow rates.

• Operating pressure: 1.2 to 4.0 kg/cm² (17- 56.88 psi).

• Flow rate: 20 to 95 lph.

• Wetted diameters: 3.0 to 7.5 m

• Special swivel (green) for inverted operation.

• Two-stage wetted diameter control.

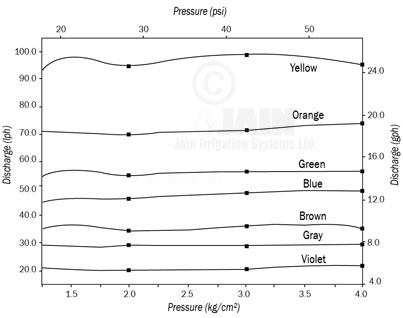

Technical Specifications:

All swivels tested at 0.25m above ground
* Single stage (no diameter limiter)
** Green swivel tested at 1.2 m above ground.
*** To be used only without diameter limiter.

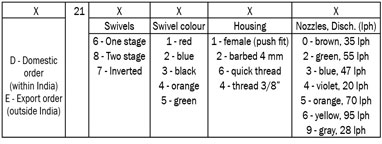

Ordering Specifications:

Example: D216243 - This code represents 2002 AquaSmart with one stage blue swivel, 3/8 threaded housing and blue coloured nozzle.
