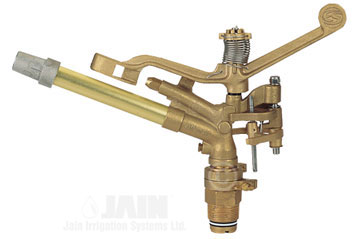

Magnum 21 - Impact Sprinkler Long Range

Features and Specifications:

  • All-purpose full - to part-circle sprinkler 1 1/4” male giant sprinkler.

  • Easily attached full- to part-circle mechanism for stock saving and easy maintenance.

  • Low angle 21º for highly effective irrigation under wind conditions.

  • Extra coverage and distribution uniformity with unique triple-nozzle overlapping design.

  • High water distribution with spacing up to 40 m.

Applications:

  • Large fields and plantations (tea gardens and coffee).

Performance Table - Magnum 21

Nozzle
mm
Pressure
kg/cm²
Discharge
m³/h
Diameter
m
9.0 x 6.5 x 3.2
4.0 0.980 51.0
5.0 1.090 53.0
6.0 1.200 54.0
7.0 1.280 55.0
11.0 x 6.5 x 3.2
4.0 1.270 54.0
5.0 1.400 58.0
6.0 1.540 67.0
7.0 1.680 68.0

12.0 x 6.5 x 3.2

4.0 1.320 57.0
5.0 1.490 62.0
6.0 1.650 68.0
7.0 1.800 70.0
13.0 x 6.5 x 3.2* 4.0 1.490 60.0
5.0 1.790 65.0
6.0 1.900 69.0
7.0 2.030 71.0
14.5 x 6.5 x 3.2 4.0 1.700 62.0
5.0 1.910 65.0
6.0 2.080 70.0
15.0 x 6.5 x 3.2 4.0 1.930 65.0
5.0 2.150 69.0
6.0 2.360 73.0
7.0 2.480 76.0
* Standard nozzle

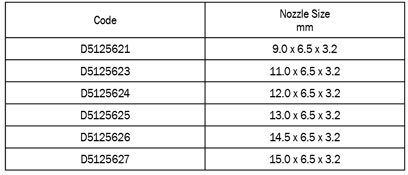

Ordering Specifications
