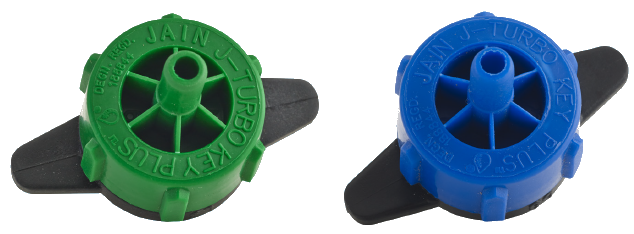

J-Turbo Key Plus™ Dripper

Features and Specifications:

• Manufactured from virgin plastic for stable performance.

• Turbulent flow path with wide cross sectional area makes the dripper clog resistant.

• Openable dripper - easy to clean.

• Extended outlet facilitates use of polyethelyne extension tube or vinyl tube.

• Narrow cross shaped inlet acts as a filter.

• UV stabilised. No environmental effects.

• Coloured cap facilitates easy identification of flow rate.

• Manufacturing coefficient of variation, CVm = 3%, ensures high field emission uniformity (EU).

• Required punch diameter 2.9 mm.

• Minimum filtration requirement - 100 micron.

Applications:

• Recommended for fruit crops, orchards, vegetables, sugarcane, cotton, etc.

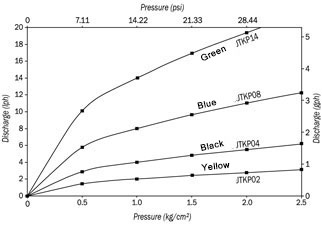

Technical Specifications :

* At operating pressure of 1kg/cm² (14.22 psi).

Ordering Specifications:

Example: DJTKP02 - This code represents J-Turbo Key Plus™ Dripper having 2 lph discharge.
J-Turbo Key Plus™: Dripper Product Design Registration No. 188844.
